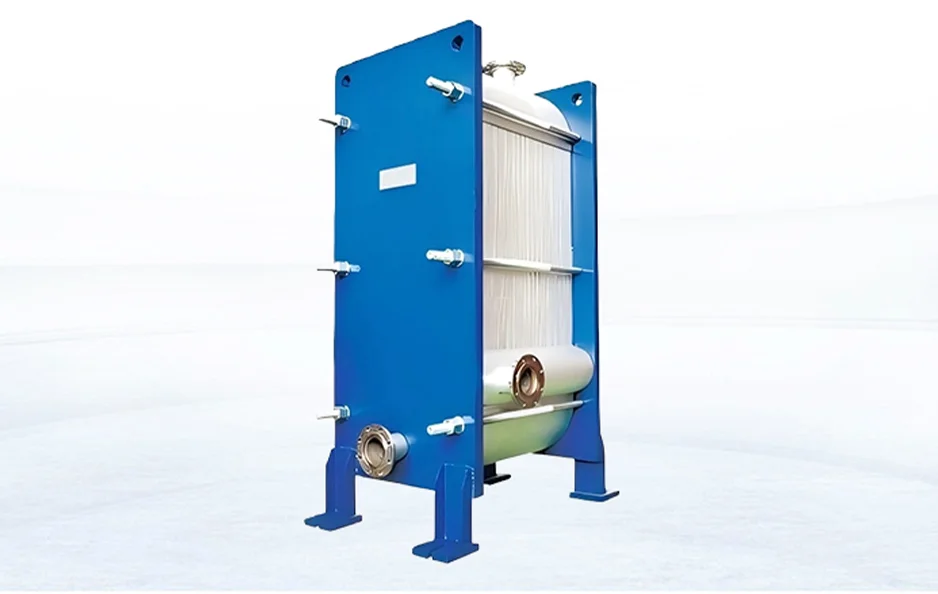

Mastering the Welding Process and Quality Control for Fully Welded Plate Heat Exchangers

In the field of industrial heat transfer tools, fully welded plate heat exchangers (PHEs) really shine as tough, useful, and adaptable gear. This gear works well in hard tasks. At Grano, we focus on building these strong units. They do great in rough spots, like places with lots of rust, high force, and wild heat levels. Unlike ones with seals, fully welded types cut down on leak chances from those seals. So, they fit best in areas like chemical work, oil and gas jobs, drug making, and power plants. But what makes our fully welded PHEs from Grano Heat special is the careful work in our welding steps. This is a key part that gives top sealing, solid build, and long life.

The welding job is not just one step in making things. It is the main support for how well it works. In this full guide, we will look closely at the welding steps for fully welded plate heat exchangers. We will check main ways, basic flows in work, picks for materials, checks for quality, and usual problems. If you are an engineer who wants to make systems run better, or a buyer who looks at sellers, knowing these parts will help you choose smart. Let’s find out how the skill at Grano Heat in welding lifts our PHEs. It gives them top trust and saves on energy use.

The Big Role of Welding in Fully Welded PHEs

Welding is the main key to a fully welded plate heat exchanger’s win. It sets right the gear’s sealing strength, build power, and work time. A bad weld can hurt the hold of fluids. That leads to drips, dirt spread, or big breaks in key spots. On the flip side, good welding boosts heat move by cutting twists that could mess up the exact space between plates. This space is needed for the best heat pass.

At Grano Heat, we see that welding care has a big effect on heat exchanger work. Even small slips in weld evenness can change flow paths. It might drop the heat pass rate by as much as 20% in rough flow types. We stick to strict welding rules. This makes sure each unit takes force up to 40 bar and heat from -200°C to 350°C. You can see this in our product details. By putting welding skill first, we not only hit but go past ISO 9001 checks. This gives buyers calm in must-do tasks.

Think about it this way. Sealing keeps everything inside safe. Strength holds up under push and pull. And life means less fix-ups over time. So, welding ties all that together. Without it, the whole unit falls short.

Main Welding Ways for Fully Welded Plate Heat Exchangers

Picking the best welding type is very important for good results in fully welded PHEs. Each way has its own pluses. They fit plate thick, material traits, and job needs. Grano Heat uses new ways to mix speed, good work, and low cost. This way, our exchangers give low dirt build and high heat use.

Laser Welding: Care for Thin Plates

Laser welding uses a tight light ray to make slim, good seams. The heat touch area is small. This way works best in thin plate jobs (under 1mm). It makes welds as slim as 0.2mm across. The good parts are less twist. This is key for keeping plate wave shapes right. And it runs faster, which helps make more in less time.

We like it for spots where plates are light. The small heat keeps the metal from bending. So, the shape stays true. That helps heat flow smooth.

TIG Welding (Tungsten Inert Gas): Depth for Strong Jobs

TIG welding, or argon gas arc welding, gives deep reach and good hold. It fits thicker plates (1-3mm) and spots with high force. The gas cover stops rust. It makes clean, bendy welds that fight breaks under heat changes. At Grano Heat, we pick TIG for spots with bad rust eaters. Here, weld strength links right to work time over 20 years.

This method lets us go deep without mess. The arc stays steady. Welders can watch and tweak as it goes. That cuts errors on the spot.

Plasma Welding: Speed and Tight Pack for Big Make Runs

Plasma arc welding mixes TIG care with a sharp focus like electron beams. It hits speeds up to 2m/min and tight grain setups. It fits auto lines well. This cuts holes and boosts fight against wear from use. The way shines in multi-step welds for tricky shapes. It matches our make for custom PHE setups that scale up.

With plasma, we weld fast but keep it neat. The arc is hot and narrow. So, less heat spreads out. That means less change in the metal around it.

To show how to use each, here is a table that compares these ways:

This chart shows how Grano Heat picks welding plans for what buyers need. It balances work and green ways.

We always match the type to the job. For light cool jobs, laser saves time. For tough chem flows, TIG holds strong. And plasma fits when we need many units quick. Each choice keeps the end product solid.

The Make and Welding Flow: A Step by Step Look

Making a fully welded PHE at Grano Heat follows a close, all-in flow. It blends exact build with checks for good. This flow makes sure every exchanger hits our sign of small size and top heat get-back. It can reach up to 95% good in some setups.

Plate Shape (Wave Press): We use high care stamps to make wave or bump patterns on steel or mix plates. This step sets the base for rough flow. It boosts heat pass rates 3-5 times more than tube-in-shell types.

The press is strong but even. Plates come out with waves that guide fluid well. No flat spots mean better mix.

Surface Clean and Clamp Set: Plates get sound wave clean to pull off rust bits and dirt. Then, light guide clamps hold them. Right spot (±0.1mm room) stops wrong lines in weld. This Grano Heat new way cuts fix work by 30%.

Clean means no junk in the weld. Clamps keep it all straight. So, seams line up perfect.

Weld Plate Pairs (Unit Parts): Single plates pair up and weld on edges with the picked way. For example, our auto TIG spots make over 1,000 seams an hour. This forms no-drip parts that stack into the main.

Pairs start as flat matches. Welds seal the sides tight. Then, they build the stack step by step.

Put Together and Shell Weld: Parts go into the frame. The outer shell welds around. This closes the build. It makes a self-clean flow with no stuck spots. That fits clean jobs right.

The shell adds strength outside. Welds here must match the inside ones. No weak links allowed.

Heat Treat and Stress Cut: After weld, we heat to 600-800°C. This eases left stresses and stops tiny breaks. Grano Heat’s no-air ovens heat even. It grows fight life under back-and-forth loads.

Heat softens the metal just right. Stress fades slow. So, the unit stays flat under use.

Force and Drip Checks: Water force tests at 1.5 times plan force. Plus, helium drip find (touch <10^-9 mbar·L/s) checks hold. This hard step proves our PHEs’ fight in rough fluids.

Tests push limits safe. If it holds, it’s good to go. Logs keep track for proof.

This smooth flow, sharp over years, lets Grano Heat give custom fixes. From small move units to big block systems, we hit tight times.

In practice, we tweak the flow for each order. A chem plant might need extra clean steps. An oil rig calls for thick plates. But the base stays the same. Solid and sure.

Picking Welding Fills and Base Metals: Made for Long Hold

Fit of materials is a must-no in fully welded PHEs. Welds need to match the base’s fight to rust and heat traits. Grano Heat gets top mixes to fit many jobs. This keeps match with fluids like acids, clean stuff, or cold gases.

Usual materials cover:

• 304/316L Steel: Cheap for normal work. 316L fights pit rust better in salt spots.

• SMO 254 (6Mo Super Austenitic): For bad rust, like acid flow jobs. It has PREN over 40.

• Titanium and Nickel Mixes: Light titanium fits sea water clean. Hastelloy C-276 takes fluorides and air eaters up to 260°C.

• Other Specials: Inconel for hot gas flows or duplex steel for off-shore oil pull.

Pick rules base on fluid rust level, run heat/force, and rule fits (like FDA for food/drug). For welds, we use same or better fills. Like ER316L for 316L base. This gets full reach and same pull. Grano Heat’s metal know-how makes sure welds not just join. They make the whole exchanger tougher. It cuts down time out in round-the-clock runs.

We test each pick first. Samples go in mock fluids. If it holds, we green light it. This saves headaches later.

Checks for Quality and Hold Steps: Making Sure Weld Good

Quality is not last at Grano Heat. It is built in every weld. Our many-level holds guard against bad spots. They make sure PHEs work without hitch.

• No-Break Checks (NDT): X-ray sees inside bad like holes. Sound wave checks reach deep. Color drip finds top cracks. We cover 100% on key seams.

Each test has its spot. X-ray for deep views. Sound for thick checks. They team up for full see.

• Seal Hold Tests: Air and water force trials act like real push. Auto notes keep track. Drip rates under 0.1% of plan flow show our no-seal win.

These tests run long. We watch for slow leaks too. Only pass means ship.

• Metal Cut Views: Side cuts get etch and look under glass. This checks join zones, grain setup, and hard spots. It makes sure delta-ferrite is right for bend.

Views show the weld heart. Good grains mean strong hold. Bad ones get fixed quick.

Main hold spots cover weld even (by shape measure) and left stress watch (by bend tools). By adding now AI eye systems, Grano Heat cuts change to <5%. This fits ASME Section VIII rules for force holds.

We train teams on these tools. Daily checks keep skills sharp. So, quality stays high day in, day out.

Usual Welding Bad Spots and Stop Plans

Even with good hands, weld risks stay. Knowing bad spots helps fight them front. This is a base of Grano Heat’s no-break way.

• Holes and Stuck Bits: Gas traps from bad cover. Stop: Set gas flow right (15-20 L/min) and warm first to 100°C.

Warm metal takes gas out better. Right flow keeps air away. Simple but key.

• Breaks (Hot or Cold): Heat push in mix metals. Fight: Keep step heats <150°C and tap after weld.

Taps spread stress even. Low heat slows cool too fast.

• No Join: Not full melt at joins. Fix: Set power (100-200A for TIG) and move speed (10-15 cm/min).

Power melts deep. Speed keeps it from burn.

• Twist/Bend: Uneven shrink. Cut: Weld in steps and use hold clamps. Plus, watch cool paths.

Clamps fight pull. Steps let one side set before next.

Our stop plans come from FMEA (Bad Way Effect Check). They drop bad rates under 0.5%. This makes PHEs last 50% longer than others in hard jobs.

We log each fix. Teams learn from past runs. So, we get better each time.

Wrap Up: Welding as the Heart of Sure Heat Pass

To sum up, the welding steps and quality holds set the good of fully welded plate heat exchangers. From way pick to bad fight, each part adds to units that seal tight, pass heat well, and hold on strong. At Grano Heat, this is not just make. It is a promise to new ideas and trust. It powers your jobs with green, high-good fixes.

Want to lift your heat pass play? Reach our pros now for a fit talk on fully welded PHEs. They blend easy into your setups.

FAQ

Q: What makes fully welded plate heat exchangers superior to gasketed ones in terms of welding?

A: Fully welded PHEs eliminate gasket vulnerabilities through continuous seams, enhancing leak-proof operation in high-pressure or corrosive settings. At Grano Heat, our advanced welding ensures structural integrity that gasketed designs can’t match, extending service life significantly.

Q: How does Grano Heat ensure welding quality in custom PHE projects?

A: We implement 100% NDT, including X-ray and ultrasonic testing, alongside helium leak checks. Our AI-monitored processes and material-matched fillers guarantee precision, tailored to your specific media and pressure requirements for optimal performance.

Q: Can you recommend a welding technique for high-temperature applications?

A: For temperatures up to 350°C, TIG welding is ideal due to its deep penetration and oxidation resistance. Grano Heat pairs it with Hastelloy materials for seamless integration in petrochemical or power generation setups, minimizing thermal fatigue.
